Splitter-Bandsaw

Click on above image to view full picture

Click on above image to view full picture

Spalten

SB49-08

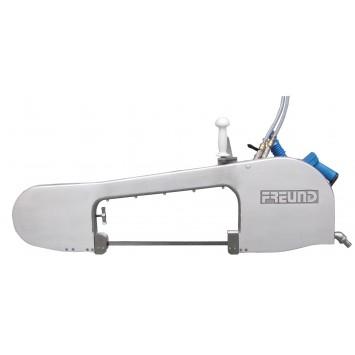

Splitter-Bandsaw

Splitter-Band-Saw

  • ideally suited for gambrels (due to lowest front end <300mm)
  • hence splitting of cattle-carcasses is possible, but restricted
The basic-model has the following standard-features:
  • manual blade-tensioning-system MAN
  • lever-guides HF
  • Machine-Safety-Switch on housing cover MSS
  • water-hose kit
  • incl. 5 band-saw-blades
  • inbuilt disinfection kit DES-E
optional
  • automatic (hydraulic) tensioning-system for fastest blade change and accurate blade-tension at any time AUT
  • automatic blade twisting for fastest blade change with adjustable blade-guides JF
  • electro-water-valve EWV
  • 2-Hand-Safety-Anti-Tie-Down 2HATD

physical characteristics

Weight
64,0 kg
Sägeblattlänge
2.913 mm
Cutting depth
490 mm
Schnittbereich
490 mm
Speed
12,1 m/min

electronic input

Phasen
3
Voltage
42 V
Protection
65 IP

Input Wasser

Wasseranschluss 20°C
3/8 inch

electronik output

Power
2300 Watt (50Hz)/VA
output_leistung_hp_50hz
3,1 hp (50Hz)/VA
